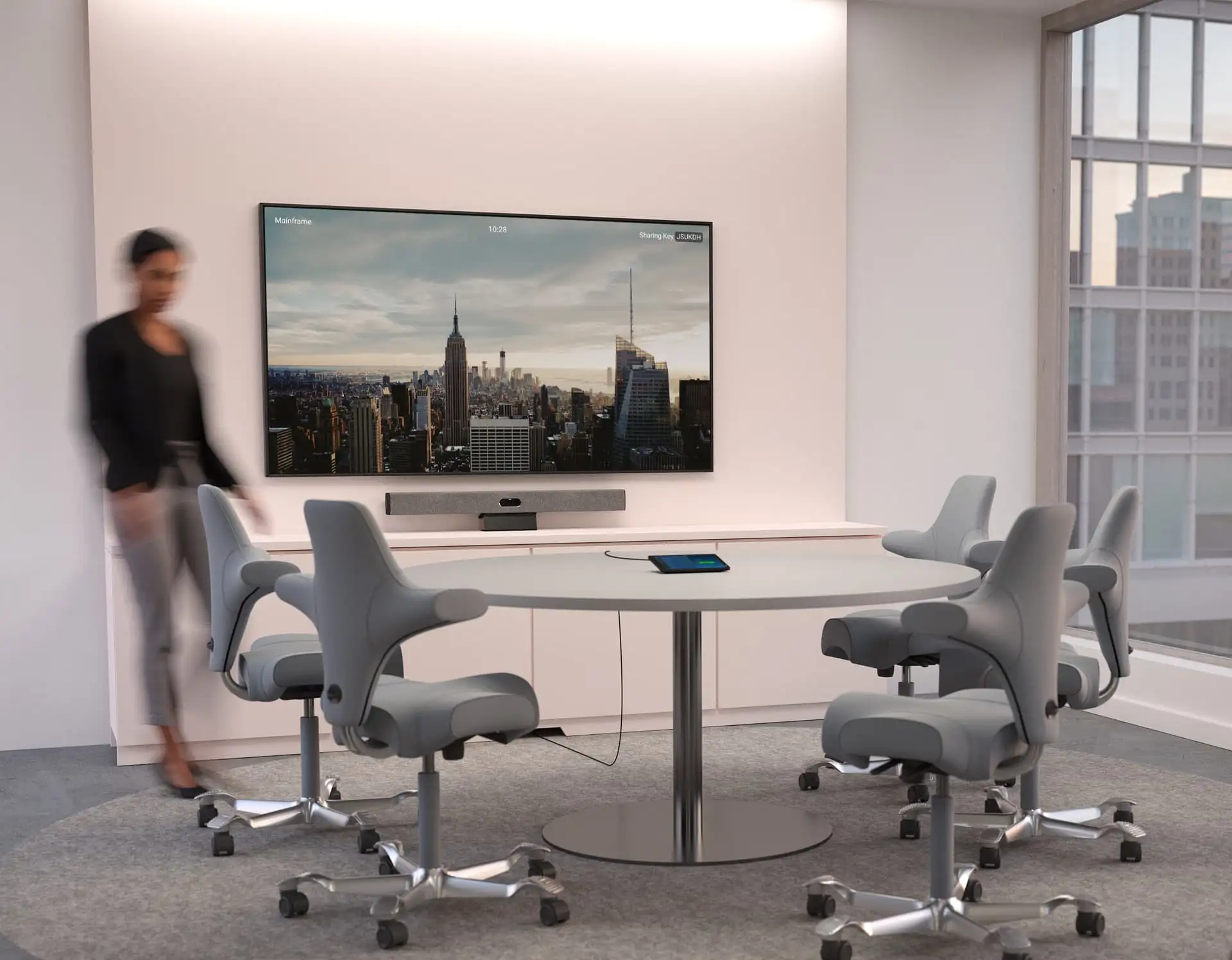

Neat Bar Pro

Neat Bar Pro packs a stack of tech into a simple and elegant slimline device. Capable of driving three large screens, it enables you to see people and content together more clearly. Simultaneously, its uncompromising audio and video quality give you an incredibly immersive, natural meeting experience throughout any space.

Neat Bar Pro
011121030013 neatbarproandpad 01 v01 3
header 1 1920w

Pro experience throughout any space.

Take your video conferencing experience up a notch with Neat Bar Pro. Capable of driving three large screens the Neat Bar Pro delivers an immersive, high quality meeting room experience for Zoom or Microsoft Teams. WIth large meeting spaces in mind, the Neat Bar Pro is equipped with two superior resolution cameras, an advanced image depth sensor to deliver 16x zoom, and a crisp audio system. Add the Neat Pad through a wired or wireless network connection as a controller or scheduler to increase the usability and control. Upgrade your virtual meetings with the Neat Bar Pro.

Why We <3 It All Features Specifications In the Box

Why We <3 It

  • Crystal-Clear Collaboration

    Our clients frequently struggle with video quality in larger spaces. Neat Bar Pro's dual cameras and depth sensor deliver exceptional clarity with 16x zoom, ensuring everyone is seen clearly whether they're at the back of the boardroom or right up front. The intelligent framing keeps remote participants engaged by making everyone visible.
  • Simplified Setup & Control

    We love how the Neat Bar Pro removes typical conference room complexity. The sleek all-in-one design means fewer components to install and manage. When paired with the Neat Pad controller, room scheduling and meeting controls become intuitive for everyone, reducing support calls and meeting delays.
  • Future-Ready Integration

    Whether you're using Microsoft Teams or Zoom, Neat Bar Pro delivers a consistent, high-quality experience. Its robust features and processing power mean it's ready for new collaboration features as they roll out, protecting your investment for years to come.

All Features

  • General

    • Wakeup sensor (radar)
    • Depth sensor (time-of-flight VGA 60° FOV)
    • Orientation sensor (accelerometer)
    • Ambient light sensor
    • Camera LED
    • System LED
    • Tripod mount compatible (1/4-20 UNC threads)
    • Table stand, wall mount and screen mount
    • Security lock slot (Kensington compatible)
    • Secure boot
    • Triple screen support
    • Sensors for temperature, humidity and air quality
  • Video

    • Pro 100 MP camera system with wide and tele cameras
    • Wide camera: 50 MP, ƒ/2.8 aperture, 113° horizontal field of view
    • Tele camera: 50 MP, ƒ/1.8 aperture, 70° horizontal field of view
    • Hybrid zoom up to 16x
    • Automatic people framing
    • Hardware accelerated video encode and decode
    • Distortion correction
    • Noise reduction
    • Chromatic aberration correction
    • Automatic white balance and color correction
    • People video resolution: Up to 1080p / 30
    • Content video resolution: 720p / 60, 1080p / 30
  • Audio

    • Speakerbox for maximal tonal range with minimal distortion
    • 3 full-range speakers ready for directional and stereo sound
    • Woofers with two opposing drivers for vibration cancellation
    • 4 tracking mics
    • 16 microphones in a beamforming array
    • Hardware accelerated audio processing
    • Ultrasonic support for wireless content sharing
    • Echo cancellation
    • Noise suppression
    • Automatic gain control
    • Dereverberation

Specifications

  • Electrical Requirements

    • 100-240V ~ 50/60Hz 1.2A
    • Built-in power supply
    • Power consumption:
    • Idle: 6W
    • In call: 8-15W
  • Size & Weight

    • Width: 35.04 inches (890 mm)
    • Height: 3.15 inches (80 mm)
    • Depth: 3.15 inches (80 mm)
    • Weight: 6.83 pounds (3.1 kg)
  • Networking & Ports

    • WiFi
    • AC power (internal power supply)
    • Ethernet
    • USB-C for input when connected to a touch screen
    • 3x HDMI out for external screens
    • HDMI-in for screen sharing
    • Auxiliary port for 3rd party audio extensions (RJ45)

In the Box

  • Neat Bar

    • HDMI cable (6.5 feet / 2 meters)
    • Ethernet cable (9.8 feet / 3 meters)
    • Power cable (9.8 feet / 3 meters)
    • Mount adapter, wall mount, screen mount and table stand
    • 4 × M8 screw (0.94 in / 24 mm) for VESA mount
    • 4 × M6 screw (0.94 in / 24 mm) for VESA mount
    • 2 × spacer (to secure parallel TV mount)
    • 1 × 5 mm hex key for the screen mount
    • 1 × 2 mm hex key for the mount adapter
    • 2 additional screw bags for dual or triple screen setup
    • 4 × M8 screw (0.94 in / 24 mm) for VESA mount
    • 4 × M6 screw (0.94 in / 24 mm) for VESA mount
    • 4 × spacer (to secure alignment of all screens)
