Neat Bar.

Neat Bar is a simple and elegant, compactly designed yet highly capable meeting room device for Zoom or Microsoft Teams. It's perfect for bringing superior-quality audio and video to your meeting, huddle or focus rooms for up to ten people. You can mount Neat Bar above or below one or two monitors, and it comes with Neat Pad, our dynamic touch screen, which you can use to control your meetings or display room availability outside the room.

design mounting 2 2x

Simple set-up

Everything you need to connect Neat Bar to your TV or monitor is in the box, so it’s easy for anyone to install and set up. Just plug in the cables, and Neat Bar will auto-pair with Neat Pad. What’s more, because Neat Bar and Neat Pad have auto flip, they instantly realign your view, regardless of how you mount or position them.



Just works.

Neat Bar self-activates the moment you walk in the room, immediately turning on your meeting room monitor and checking you into the room. Then with just one tap, you can wirelessly share your screen or start your meeting. It also instinctively frames you perfectly and auto releases the room when you leave.

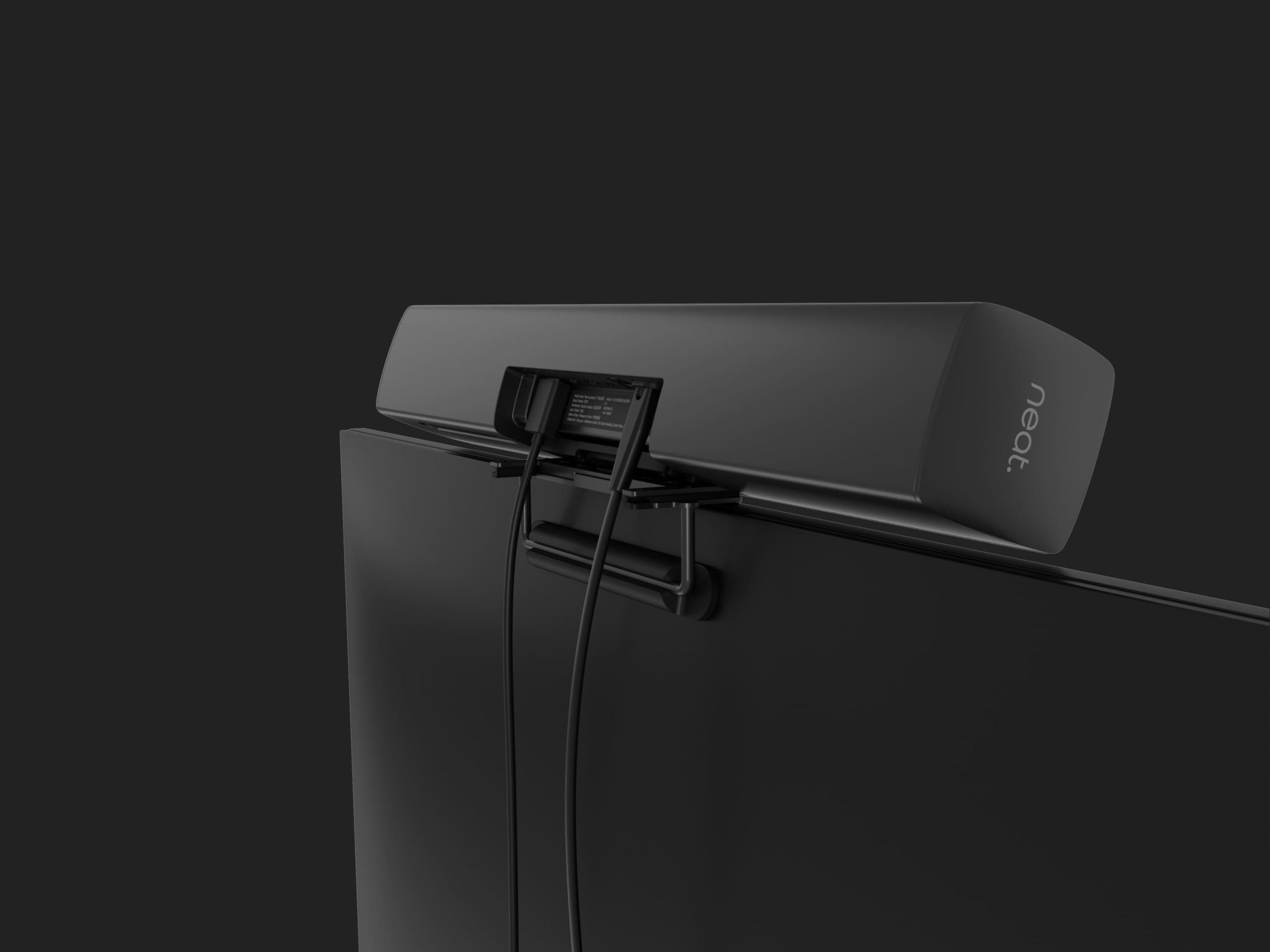

Snap it on.

Our snap-on mount is custom made for Neat Bar to fit snugly on top of smaller screens or monitors. The mount attaches to your screen or monitor’s back with adhesive tape and is suitable for any display.



nn snap on it 2x



Design and Intelligence

The Neat Bar delivers exceptional capability in a compact design, featuring carefully selected technology components and an integrated power supply that reduces clutter. With its high-performance chip, the system eliminates the need for a dedicated PC while enabling accelerated processing. The fanless design promotes natural airflow, ensuring silent operation without distracting fan noise.



Room Management and Connectivity

The system offers instant readiness, automatically activating when people enter through its ultrasonic sensor system. It ensures reliable connectivity with one-click wireless sharing and proximity join capabilities for Zoom or Microsoft Teams, requiring just one cable for power and ethernet, or optional WiFi connectivity. Integrated Bluetooth support and a wide-angle ultrasonic tweeter provide comprehensive room coverage.



design mounting 1 2x



Audio and Visual Excellence

The device features a custom-selected 4K wide-angle camera with dynamic capabilities and ambient light sensing for optimal video quality. The audio system combines five strategically angled microphones with three sensor mics for advanced beamforming, while the innovative speakerbox design maximizes tonal range and clarity through opposing speaker drivers and a dedicated tweeter.

neat bar generation 2

Smart Environment and Control

Built-in sensors continuously monitor air quality, temperature, and humidity levels. The Neat Pad companion device offers flexible mounting options for meeting control or room availability display, with future software updates activating its built-in microphones for enhanced audio pickup. Multi-color LED indicators provide clear room status visible from a distance.

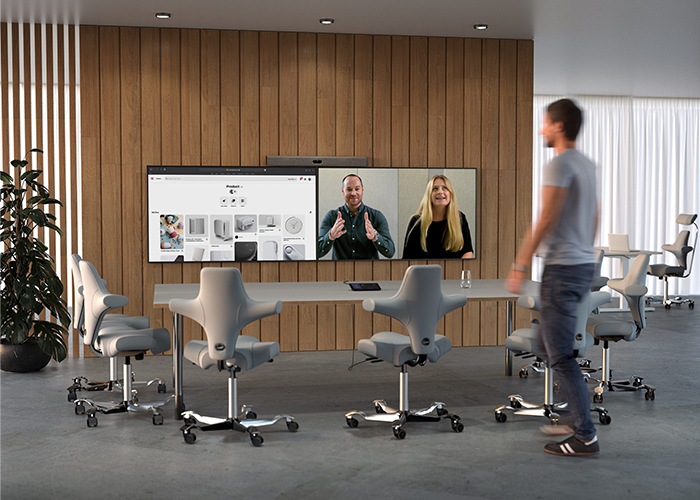

neat bar pro neatbarpro se lifestyle

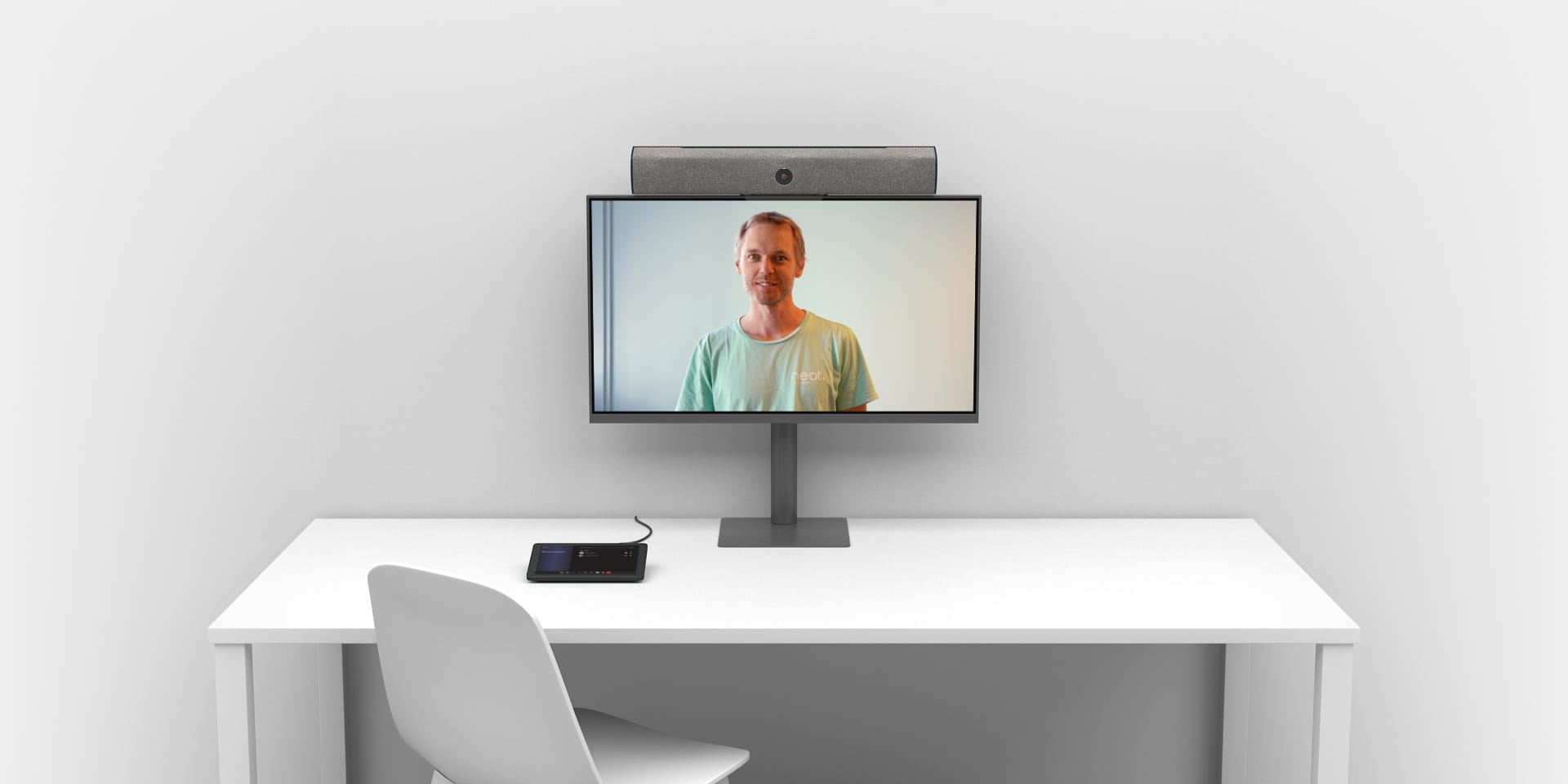

simple setup img 1 1 3 1920w

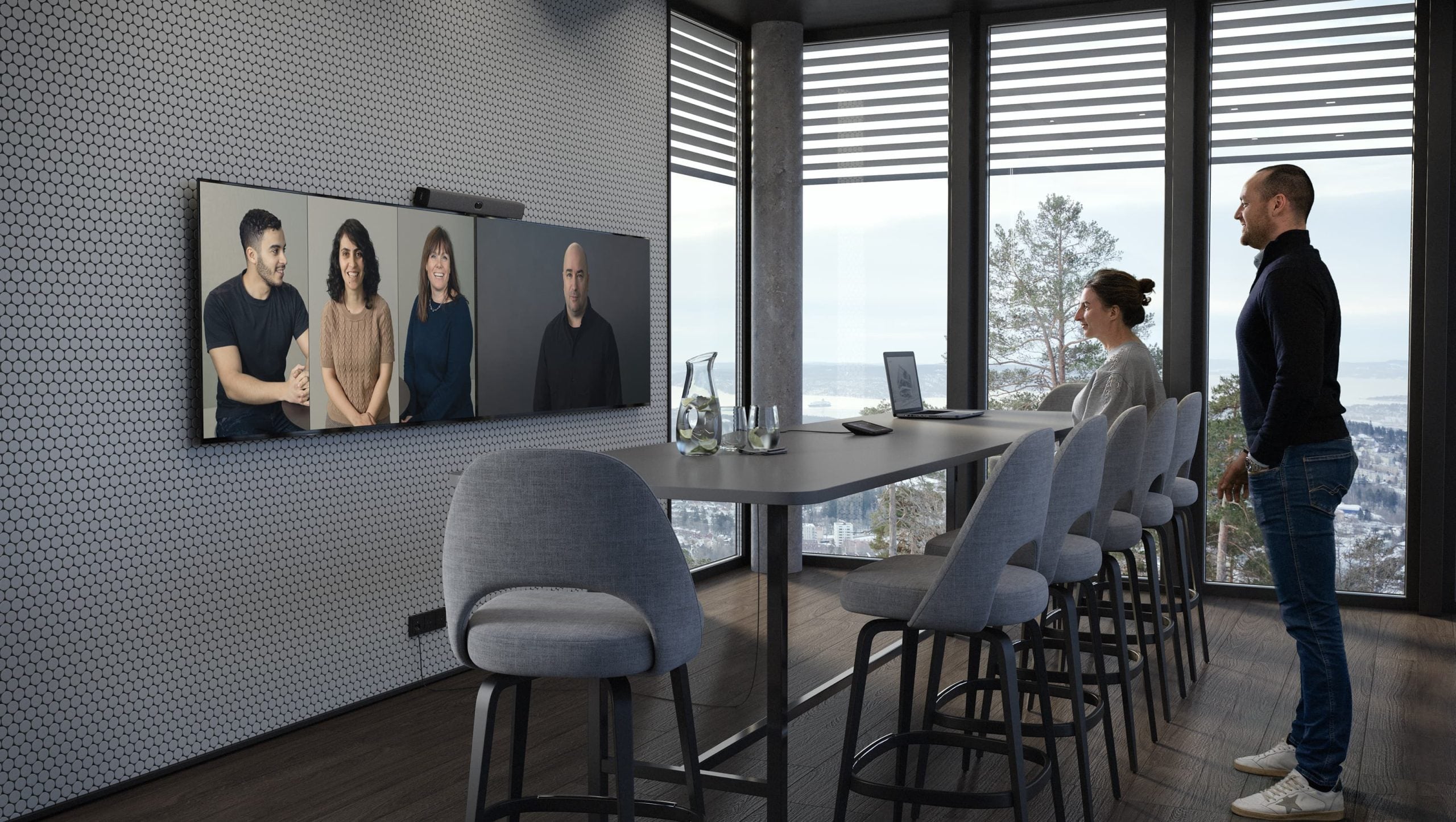

section experience desk 2x

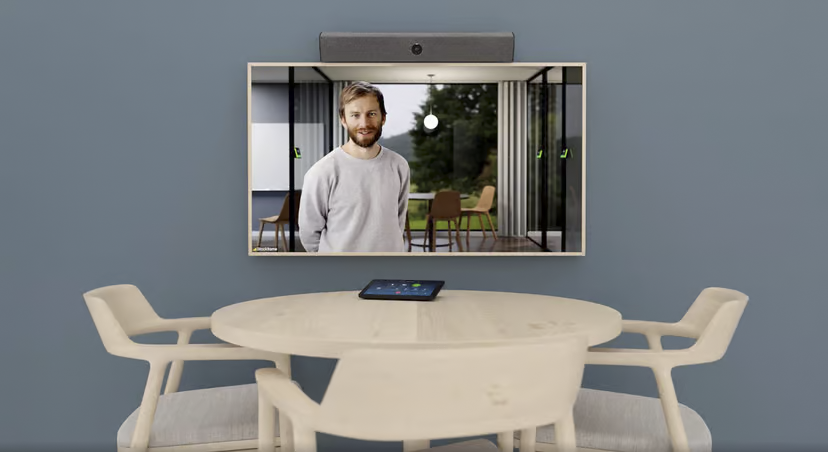

neat bar bundle video conference bar neat pad controller
All Features Specifications In the Box

All Features

  • General

    • Camera LED
    • System LED
    • Accelerometer
    • Ambient light sensor
    • Table stand, wall mount and screen mount
    • Dual screen support
    • Security lock slot (Kensington compatible)
    • Secure boot
    • BYOD mode (USB passthrough)
    • Native support for Zoom Rooms
    • Native support for Microsoft Teams Rooms on Android
    • Sensors for temperature, humidity, CO2 and VOC
  • Audio

    • Speakerbox for maximal tonal range with minimal distortion
    • Opposing drivers for vibration cancellation
    • Dedicated wide-angle ultrasonic tweeter
    • 3 sensor mics
    • 5 microphones angled in an end-fire array
    • Hardware accelerated audio processing
    • Beamforming
    • Echo cancellation
    • Noise suppression
    • Automatic gain control
    • Dereverberation
  • Video

    • 4x digital zoom (optional 8x digital zoom)
    • 4056×3040 (12 MP) capture resolution
    • 120 degrees horizontal field of view
    • Automatic people framing
    • Hardware accelerated video encode and decode
    • Distortion correction
    • Noise reduction
    • Chromatic aberration correction
    • Automatic white balance and color correction

Specifications

  • Electrical

    • 100-240V ~ 50/60Hz 0.5A
    • Built-in power supply
    Power consumption
    • Idle: 3,5W
    • In call: 10-11W
  • Size and weight

    • Width: 21.9 inches (556 mm)
    • Height: 3 inches (76 mm)
    • Depth: 3 inches (76 mm)
    • Weight: 3.75 pounds (1.7 kg)
  • Networking and ports

    • WiFi
    • Bluetooth for proximity join in Microsoft Teams
    • AC Power (internal power supply)
    • Ethernet
    • 2 × HDMI-out
    • HDMI-in for screen sharing
    • USB-C for BYOD mode (USB passthrough)
    • or input when connected to a touch screen

In the Box

  • Neat Bar

    • HDMI cable (6.5 feet / 2 meters)
    • Ethernet cable (9.8 feet / 3 meters)
    • Power cord (9.8 feet / 3 meters)
    • Mount adapter, wall mount, screen mount, table stand, and snap-on mount
    • 4 × M6 screw (0.94 inches / 24mm) for VESA mount
    • 4 × M8 screw (0.94 inches / 24mm) for VESA mount for two screen setup
    • 2 × spacer to secure parallel TV mount
    • 2 mm hex wrench
    • 5 mm hex wrench
    • 1 additional screw bag for dual screen setup
    • 4 × M8 screw (0.94 in / 24 mm) for VESA mount
    • 4 × M6 screw (0.94 in / 24 mm) for VESA mount
    • 4 × spacer (to secure alignment of all screens)
  • What you need

    • Internet connection
    • Display (16:9 aspect ratio) with 1080p resolution or better
    • Licence for Zoom Rooms or Microsoft Teams
